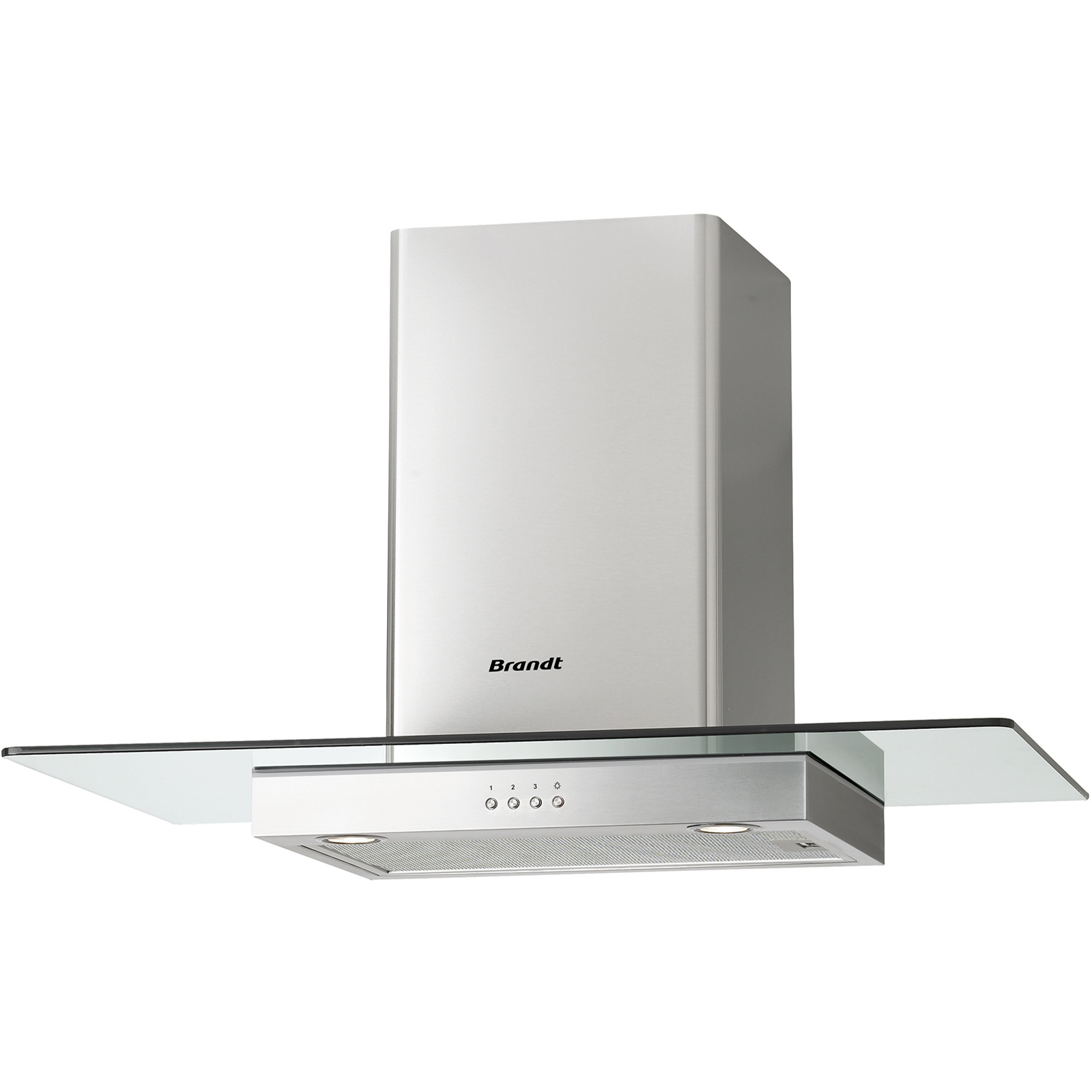

Wall-mounted extractor hood AD1189X - Stainless steel+glas

- Decorative glass
The combination of metal and glass creates harmonious elegance with other built-in product ranges.

- Standard carbon filter
The filter provides an effective air purification in recycling mode.

- Halogen lighting
It provides a natural and powerful light which is evenly dispensed over the cooking surface.

Technical characteristics

Main Specifications

Type of hoods
Wall decorative hood
Output air extraction (m3/h)
800
Width (cm)
90

Control panel

Type of control
Electronic
Boost position
Without

Lighting

Number of lights
2
Light position
Under;Right;Left
Type of bulb
Halogen
Lighting power (W)
20

Performance

Number of speed positions
3
Acoustic power level (recycling) (dBA)
58
Max recycling air extraction (m3/h)
600
Boost position output recirculating (m3/h)
658
Boost position air extraction (m3/h)
807
Minimum evacuation sound level (dBA)
61
Max evacuation sound level (dBA)
71

Filtering

Référence du kit de recyclage
AFC-62
Number of filters
2
No-return airflow clap
Yes
Accessories
Characoal filter
Reference of the chimney extension
ATC-250X

Dimensions

Height of product without chimmey (mm)
65
Dimensions of product HxWxD (mm)
900X65X500
Height of chimmey min/max (mm)
500 / 980
Dimensions of the packed product HxWxD (mm)
455X955X570
Gross weight (kg)
23,52
Net weight (kg)
19.5

Connections

Voltage (V)
220-240
Frequency (Hz)
50
Current (A)
10
Connection rating (W)
370W
